Architecture

• 1: Nodes
• 2: Infrastructure
• 3: PGSQL Arch

pg-test:
  hosts:
    10.10.10.11: { pg_seq: 1, pg_role: primary }
    10.10.10.12: { pg_seq: 2, pg_role: replica }
    10.10.10.13: { pg_seq: 3, pg_role: replica }
  vars: { pg_cluster: pg-test }

$ bin/pgsql-add pg-test  # Initialize cluster 'pg-test'

1 - Nodes

A node is an abstraction of hardware resources and operating systems. It can be a physical machine, bare metal, virtual machine, or container/pod.

Any machine running a Linux OS (with systemd daemon) and standard CPU/memory/disk/network resources can be treated as a node.

Nodes can have modules installed. Pigsty has several node types, distinguished by which modules are deployed:

In a singleton Pigsty deployment, multiple roles converge on one node: it serves as the regular node, admin node, infra node, ETCD node, and database node simultaneously.

Regular Node

Nodes managed by Pigsty can have modules installed. The node.yml playbook configures nodes to the desired state. A regular node may run the following services:

Here, node_exporter exposes host metrics, vector sends logs to the collection system, and haproxy provides load balancing. These three are enabled by default. Docker, keepalived, and keepalived_exporter are optional and can be enabled as needed.

ADMIN Node

A Pigsty deployment has exactly one admin node—the node that runs Ansible playbooks and issues control/deployment commands.

This node has ssh/sudo access to all other nodes. Admin node security is critical; ensure access is strictly controlled.

During single-node installation and configuration, the current node becomes the admin node. However, alternatives exist. For example, if your laptop can SSH to all managed nodes and has Ansible installed, it can serve as the admin node—though this isn’t recommended for production.

For instance, you might use your laptop to manage a Pigsty VM in the cloud. In this case, your laptop is the admin node.

In serious production environments, the admin node is typically 1-2 dedicated DBA machines. In resource-constrained setups, INFRA nodes often double as admin nodes since all INFRA nodes have Ansible installed by default.

INFRA Node

A Pigsty deployment may have 1 or more INFRA nodes; large production environments typically have 2-3.

The infra group in the inventory defines which nodes are INFRA nodes. These nodes run the INFRA module with these components:

Nginx serves as the module’s entry point, providing the web UI and local software repository. With multiple INFRA nodes, services on each are independent, but you can access all monitoring data sources from any INFRA node’s Grafana.

Note: The INFRA module is licensed under AGPLv3 due to Grafana. As an exception, if you only use Nginx/Victoria components without Grafana, you’re effectively under Apache-2.0.

ETCD Node

The ETCD module provides Distributed Consensus Service (DCS) for PostgreSQL high availability.

The etcd group in the inventory defines ETCD nodes. These nodes run etcd servers on two ports:

MINIO Node

The MINIO module provides optional backup storage for PostgreSQL.

The minio group in the inventory defines MinIO nodes. These nodes run MinIO servers on:

PGSQL Node

Nodes with the PGSQL module are called PGSQL nodes. Node and PostgreSQL instance have a 1:1 deployment—one PG instance per node.

PGSQL nodes can borrow identity from their PostgreSQL instance—controlled by node_id_from_pg, defaulting to true, meaning the node name is set to the PG instance name.

PGSQL nodes run these additional components beyond regular node services:

The vip-manager is only enabled when users configure a PG VIP. Additional custom services can be defined in pg_services, exposed via haproxy using additional service ports.

Node Relationships

Regular nodes typically reference an INFRA node via the admin_ip parameter as their infrastructure provider. For example, with global admin_ip = 10.10.10.10, all nodes use infrastructure services at this IP.

Parameters that reference ${admin_ip}:

Typically the admin node and INFRA node coincide. With multiple INFRA nodes, the admin node is usually the first one; others serve as backups.

In large-scale production deployments, you might separate the Ansible admin node from INFRA module nodes. For example, use 1-2 small dedicated hosts under the DBA team as the control hub (ADMIN nodes), and 2-3 high-spec physical machines as monitoring infrastructure (INFRA nodes).

Typical node counts by deployment scale:

2 - Infrastructure

Running production-grade, highly available PostgreSQL clusters typically requires a comprehensive set of infrastructure services (foundation) for support, such as monitoring and alerting, log collection, time synchronization, DNS resolution, and local software repositories. Pigsty provides the INFRA module to address this—it’s an optional module, but we strongly recommend enabling it.

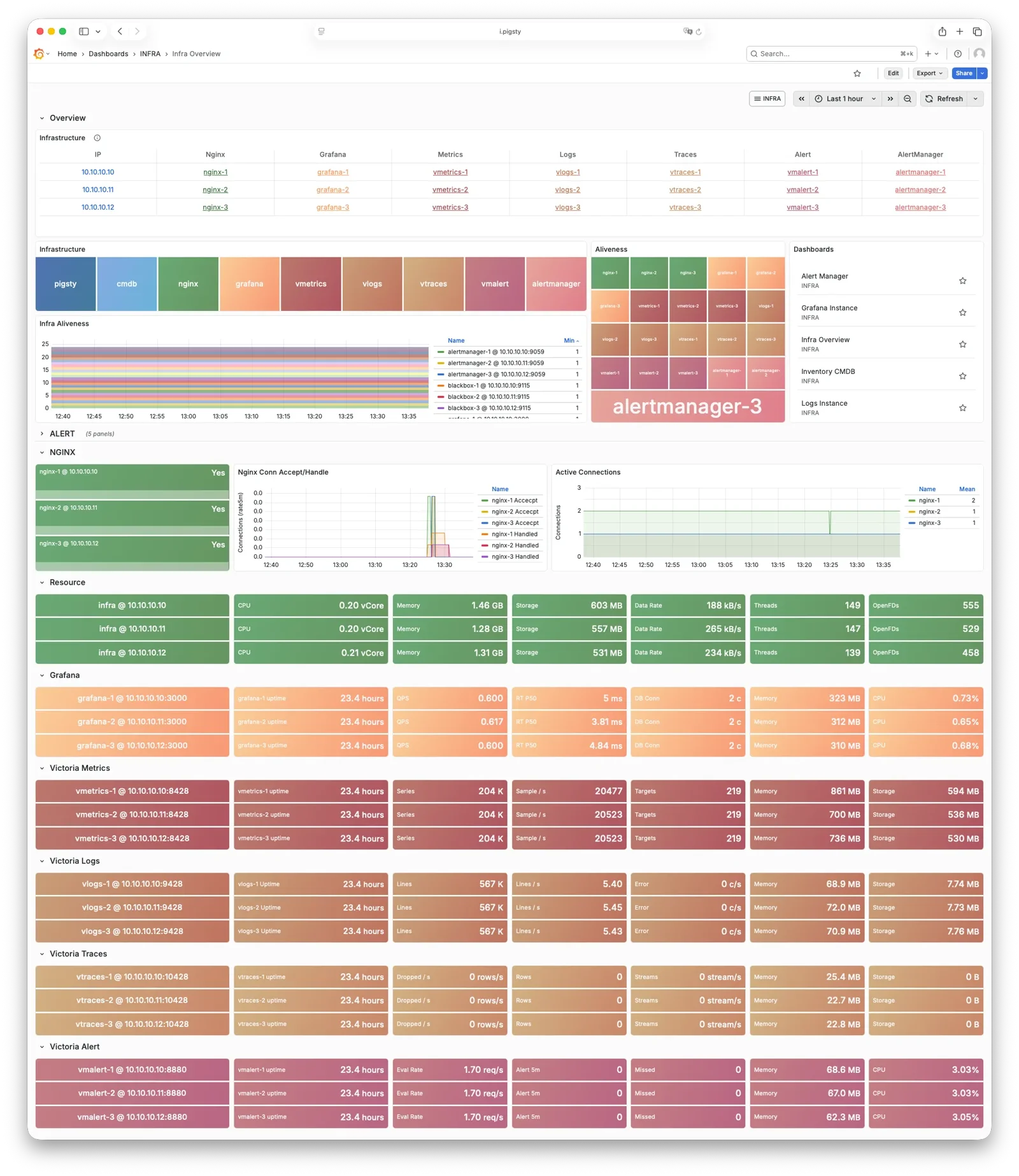

Overview

The diagram below shows the architecture of a single-node deployment. The right half represents the components included in the INFRA module:

Nginx

Nginx is the access entry point for all WebUI services in Pigsty, using ports 80 / 443 for HTTP/HTTPS by default. Live Demo

Infrastructure components with WebUIs can be exposed uniformly through Nginx, such as Grafana, VictoriaMetrics (VMUI), AlertManager, and HAProxy console. Additionally, the local software repository and other static resources are served via Nginx.

Nginx configures local web servers or reverse proxy servers based on definitions in infra_portal.

infra_portal:

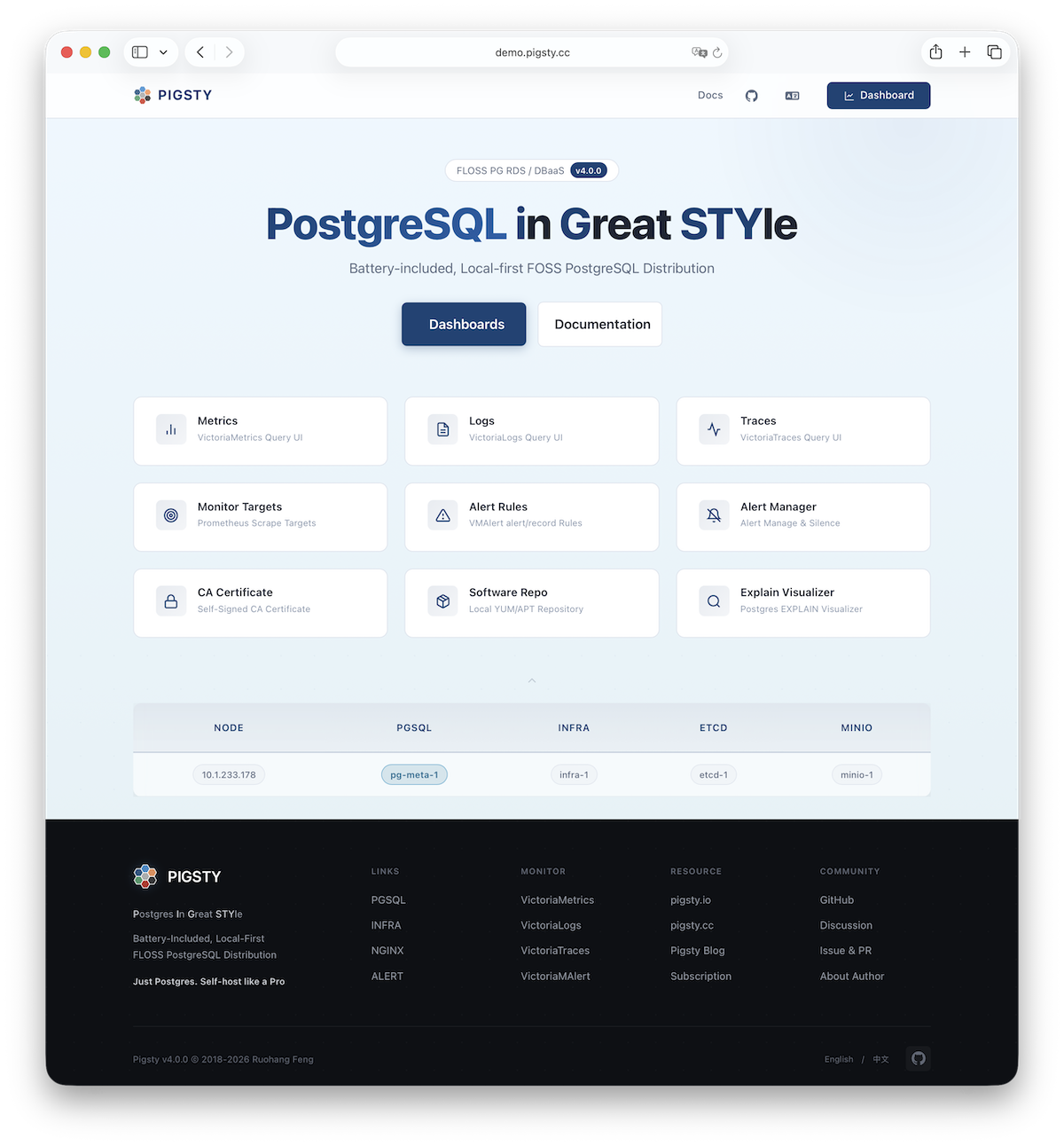

  home : { domain: i.pigsty }

By default, it exposes Pigsty’s admin homepage: i.pigsty. Different endpoints on this page proxy different components:

Pigsty allows rich customization of Nginx as a local file server or reverse proxy, with self-signed or real HTTPS certificates.

For more information, see: Tutorial: Nginx—Expose Web Services via Proxy and Tutorial: Certbot—Request and Renew HTTPS Certificates

Repo

Pigsty creates a local software repository on the Infra node during installation to accelerate subsequent software installations. Live Demo

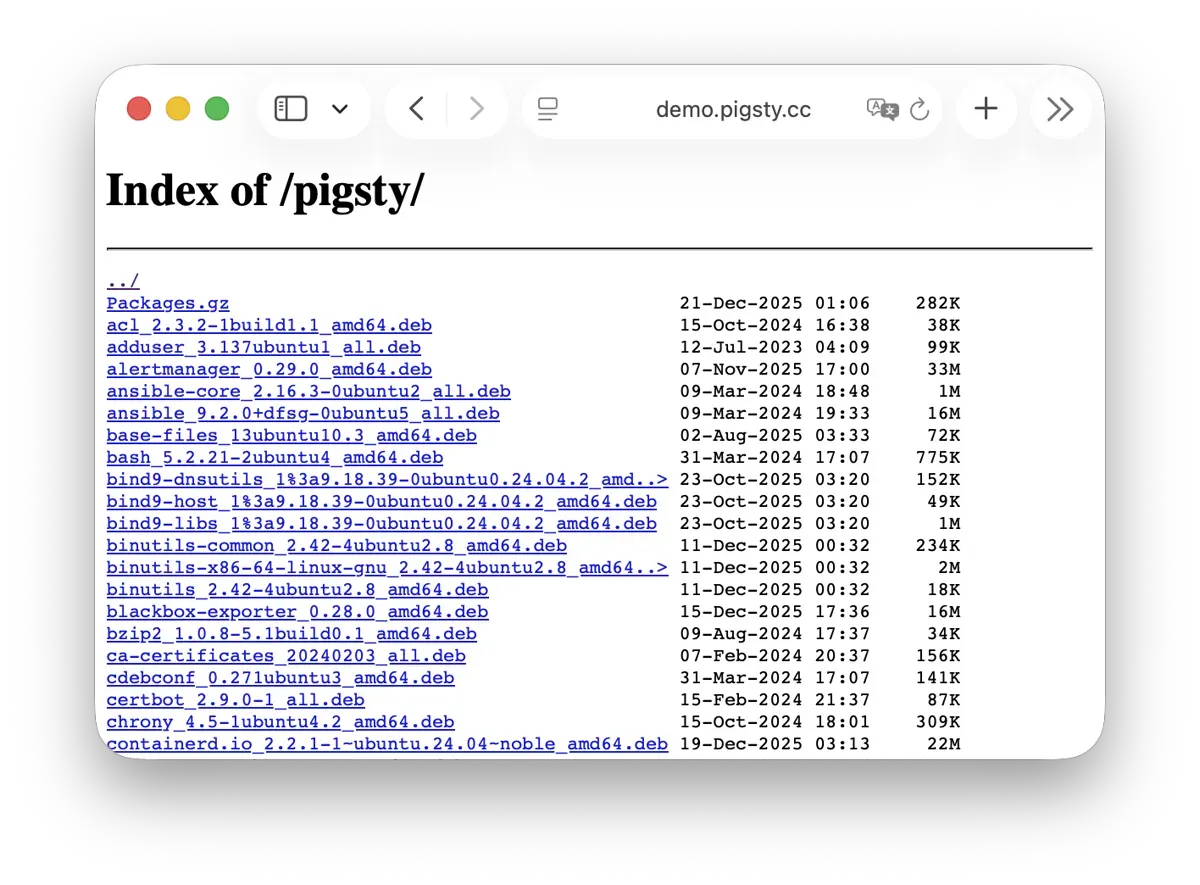

This repository defaults to the /www/pigsty directory, served by Nginx and mounted at the /pigsty path:

Pigsty supports offline installation, which essentially pre-copies a prepared local software repository to the target environment. When Pigsty performs production deployment and needs to create a local software repository, if it finds the /www/pigsty/repo_complete marker file already exists locally, it skips downloading packages from upstream and uses existing packages directly, avoiding internet downloads.

For more information, see: Config: INFRA - REPO

Grafana

Grafana is the core component of Pigsty’s monitoring system, used for visualizing metrics, logs, and various information. Live Demo

Grafana listens on port 3000 by default and is proxied via Nginx at the /ui path:

Pigsty provides pre-built dashboards based on VictoriaMetrics / Logs / Traces, with one-click drill-down and roll-up via URL jumps for rapid troubleshooting.

Grafana can also serve as a low-code visualization platform, so ECharts, victoriametrics-datasource, victorialogs-datasource plugins are installed by default, with Vector / Victoria datasources registered uniformly as vmetrics-*, vlogs-*, vtraces-* for easy custom dashboard extension.

For more information, see: Config: INFRA - GRAFANA.

VictoriaMetrics

VictoriaMetrics is Pigsty’s time series database, responsible for scraping and storing all monitoring metrics. Live Demo

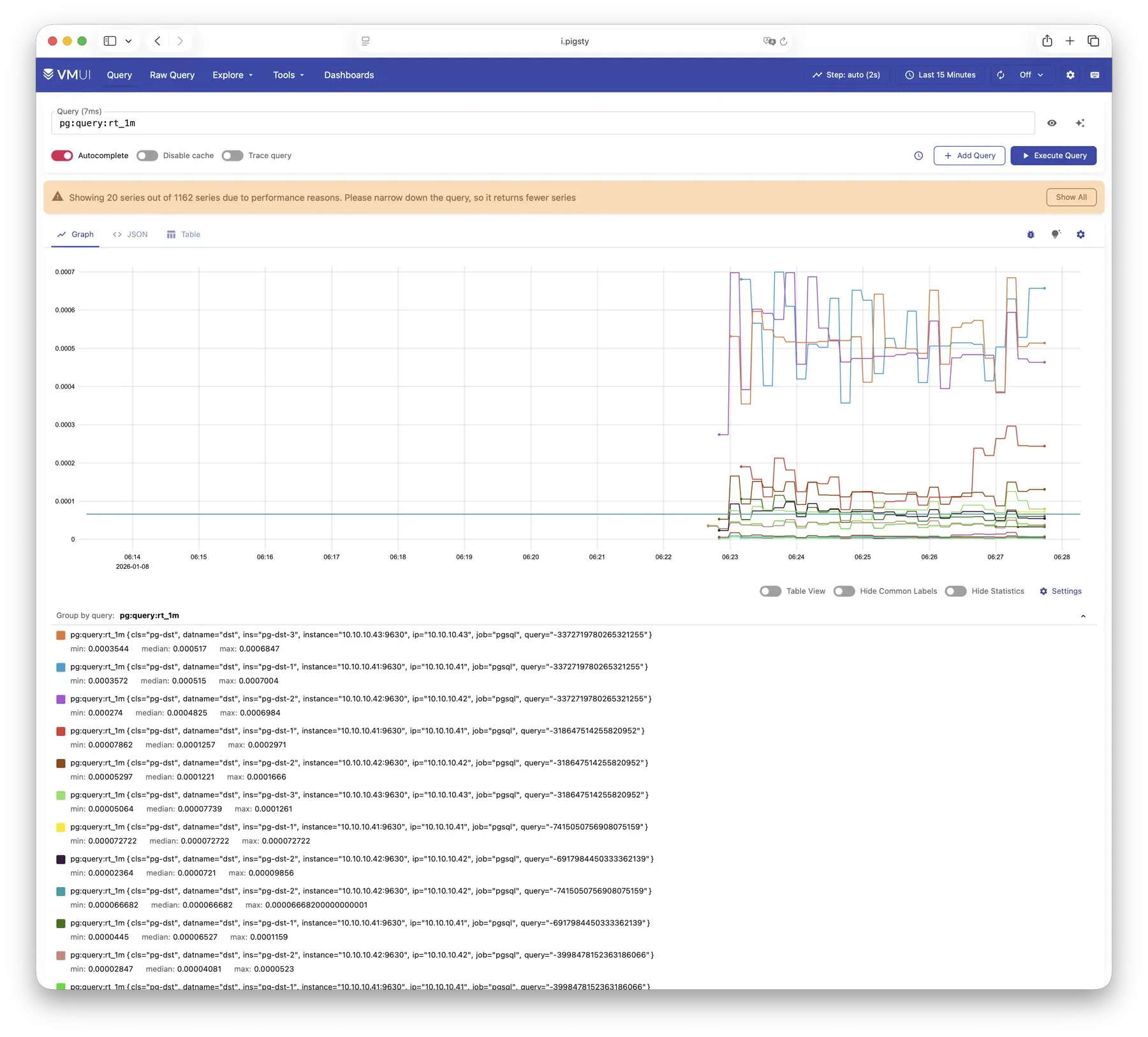

It listens on port 8428 by default, mounted at Nginx /vmetrics path, and also accessible via the p.pigsty domain:

VictoriaMetrics is fully compatible with the Prometheus API, supporting PromQL queries, remote read/write protocols, and the Alertmanager API. The built-in VMUI provides an ad-hoc query interface for exploring metrics data directly, and also serves as a Grafana datasource.

For more information, see: Config: INFRA - VMETRICS

VictoriaLogs

VictoriaLogs is Pigsty’s log platform, centrally storing structured logs from all nodes. Live Demo

It listens on port 9428 by default, mounted at Nginx /vlogs path:

All managed nodes run Vector Agent by default, collecting system logs, PostgreSQL logs, Patroni logs, Pgbouncer logs, etc., processing them into structured format and pushing to VictoriaLogs. The built-in Web UI supports log search and filtering, and can be integrated with Grafana’s victorialogs-datasource plugin for visual analysis.

For more information, see: Config: INFRA - VLOGS

VictoriaTraces

VictoriaTraces is used for collecting trace data and slow SQL records. Live Demo

It listens on port 10428 by default, mounted at Nginx /vtraces path:

VictoriaTraces provides a Jaeger-compatible interface for analyzing service call chains and database slow queries. Combined with Grafana dashboards, it enables rapid identification of performance bottlenecks and root cause tracing.

For more information, see: Config: INFRA - VTRACES

VMAlert

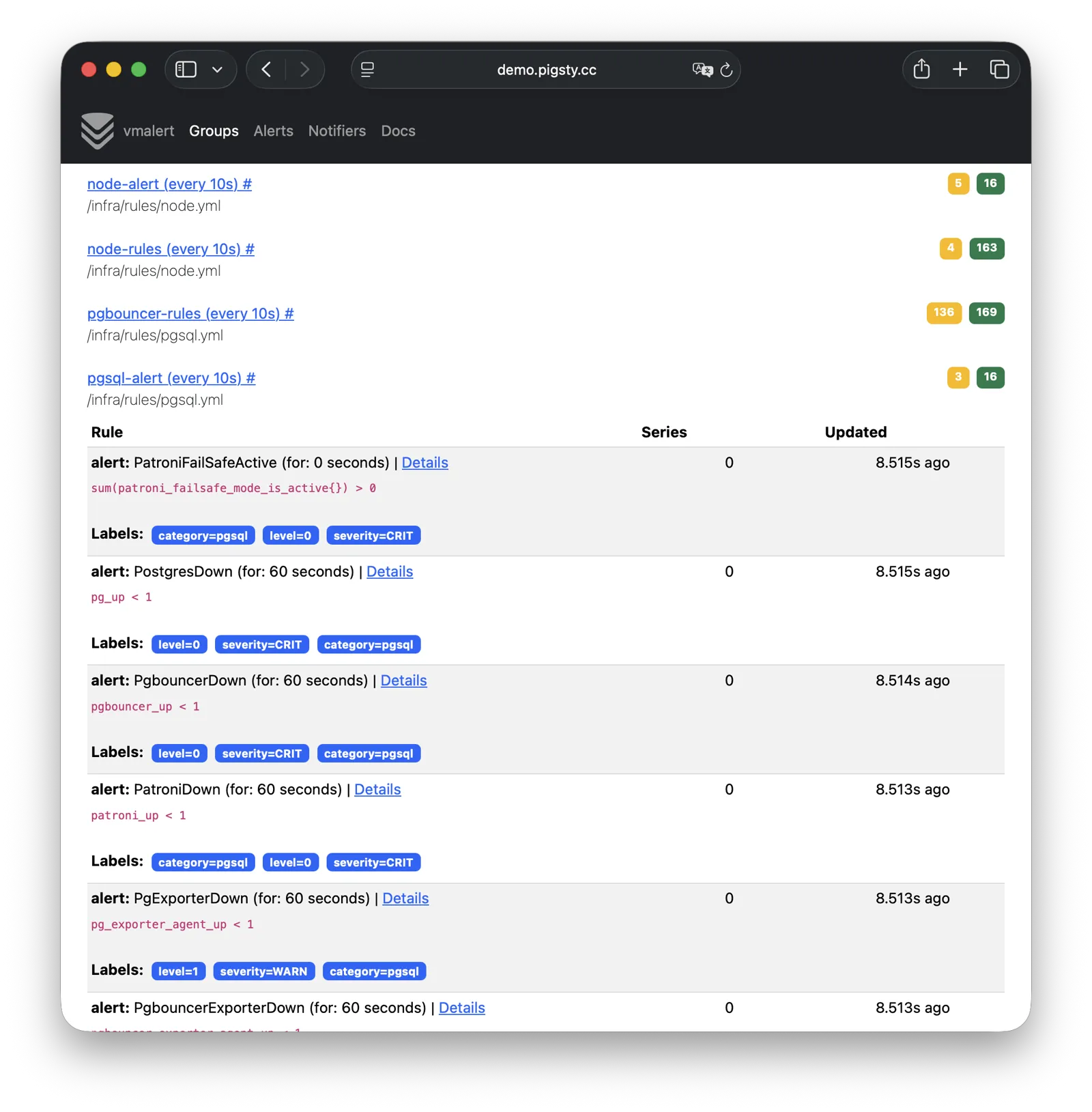

VMAlert is the alerting rule computation engine, responsible for evaluating alert rules and pushing triggered events to Alertmanager. Live Demo

It listens on port 8880 by default, mounted at Nginx /vmalert path:

VMAlert reads metrics data from VictoriaMetrics and periodically evaluates alerting rules. Pigsty provides pre-built alerting rules for PGSQL, NODE, REDIS, and other modules, covering common failure scenarios out of the box.

For more information, see: Config: INFRA - VMALERT

AlertManager

AlertManager handles alert event aggregation, deduplication, grouping, and dispatch. Live Demo

It listens on port 9059 by default, mounted at Nginx /alertmgr path, and also accessible via the a.pigsty domain:

AlertManager supports multiple notification channels: email, Webhook, Slack, PagerDuty, WeChat Work, etc. Through alert routing rules, differentiated dispatch based on severity level and module type is possible, with support for silencing, inhibition, and other advanced features.

For more information, see: Config: INFRA - AlertManager

BlackboxExporter

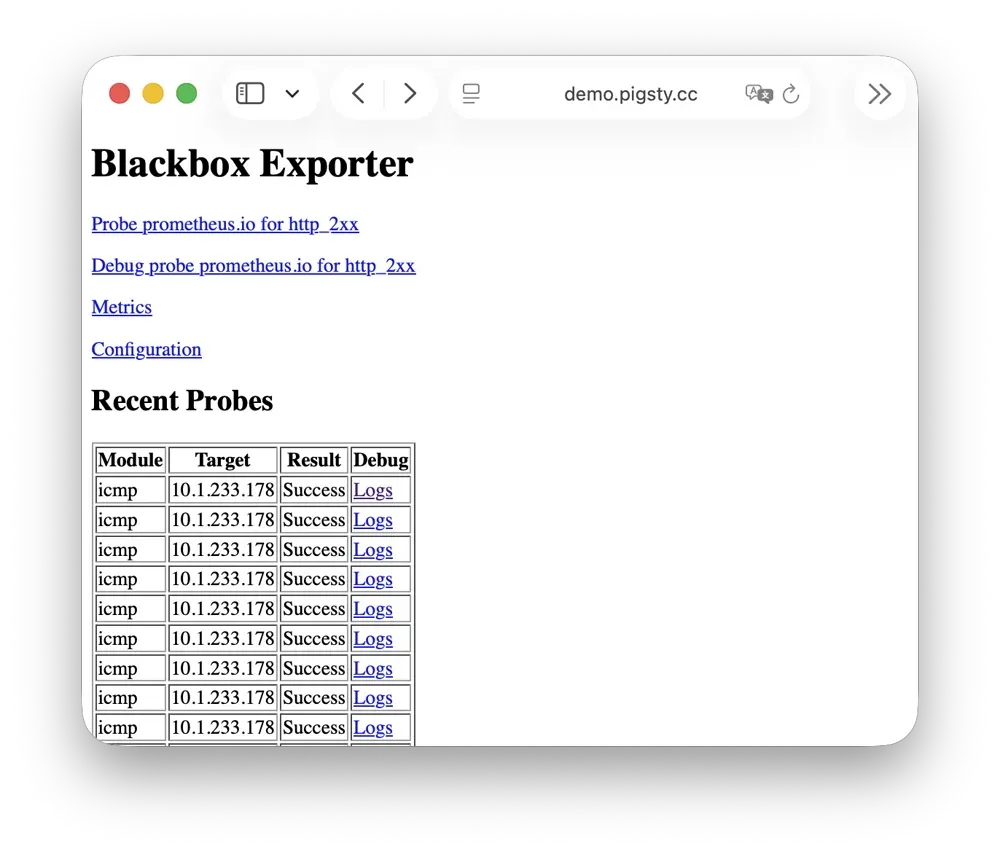

Blackbox Exporter is used for active probing of target reachability, enabling blackbox monitoring.

It listens on port 9115 by default, mounted at Nginx /blackbox path:

It supports multiple probe methods including ICMP Ping, TCP ports, and HTTP/HTTPS endpoints. Useful for monitoring VIP reachability, service port availability, external dependency health, etc.—an important tool for assessing failure impact scope.

For more information, see: Config: INFRA - BLACKBOX

Ansible

Ansible is Pigsty’s core orchestration tool; all deployment, configuration, and management operations are performed through Ansible Playbooks.

Pigsty automatically installs Ansible on the admin node (Infra node) during installation. It adopts a declarative configuration style and idempotent playbook design: the same playbook can be run repeatedly, and the system automatically converges to the desired state without side effects.

Ansible’s core advantages:

• Agentless: Executes remotely via SSH, no additional software needed on target nodes.
• Declarative: Describes the desired state rather than execution steps; configuration is documentation.
• Idempotent: Multiple executions produce consistent results; supports retry after partial failures.

For more information, see: Playbooks: Pigsty Playbook

DNSMASQ

DNSMASQ provides DNS resolution on INFRA nodes, resolving domain names to their corresponding IP addresses.

DNSMASQ listens on port 53 (UDP/TCP) by default, providing DNS resolution for all nodes. Records are stored in the /infra/hosts directory.

Other modules automatically register their domain names with DNSMASQ during deployment, which you can use as needed. DNS is completely optional—Pigsty works normally without it. Client nodes can configure INFRA nodes as their DNS servers, allowing access to services via domain names without remembering IP addresses.

• dns_records: Default DNS records written to INFRA nodes
• node_dns_servers: Configure DNS servers for nodes, defaults to INFRA node via admin_ip (can also be disabled)

For more information, see: Config: INFRA - DNS and Tutorial: DNS—Configure Domain Resolution

Chronyd

Chronyd provides NTP time synchronization, ensuring consistent clocks across all nodes. It listens on port 123 (UDP) by default as the time source.

Time synchronization is critical for distributed systems: log analysis requires aligned timestamps, certificate validation depends on accurate clocks, and PostgreSQL streaming replication is sensitive to clock drift. In isolated network environments, the INFRA node can serve as an internal NTP server with other nodes synchronizing to it.

In Pigsty, all nodes run chronyd by default for time sync. The default upstream is pool.ntp.org public NTP servers. Chronyd is essentially managed by the Node module, but in isolated networks, you can use admin_ip to point to the INFRA node’s Chronyd service as the internal time source. In this case, the Chronyd service on the INFRA node serves as the internal time synchronization infrastructure.

For more information, see: Config: NODE - TIME

INFRA Node vs Regular Node

In Pigsty, the relationship between nodes and infrastructure is a weak circular dependency: node_monitor → infra → node

The NODE module itself doesn’t depend on the INFRA module, but the monitoring functionality (node_monitor) requires the monitoring platform and services provided by the infrastructure module.

Therefore, in the infra.yml and deploy playbooks, an “interleaved deployment” technique is used:

• First, initialize the NODE module on all regular nodes, but skip monitoring config since infrastructure isn’t deployed yet.
• Then, initialize the INFRA module on the INFRA node—monitoring is now available.
• Finally, reconfigure monitoring on all regular nodes, connecting to the now-deployed monitoring platform.

If you don’t need “one-shot” deployment of all nodes, you can use phased deployment: initialize INFRA nodes first, then regular nodes.

How Are Nodes Coupled to Infrastructure?

Regular nodes reference an INFRA node via the admin_ip parameter as their infrastructure provider.

For example, when you configure global admin_ip = 10.10.10.10, all nodes will typically use infrastructure services at this IP.

This design allows quick, batch switching of infrastructure providers. Parameters that may reference ${admin_ip}:

For example, when a node installs software, the local repo points to the Nginx local software repository at admin_ip:80/pigsty. The DNS server also points to DNSMASQ at admin_ip:53. However, this isn’t mandatory—nodes can ignore the local repo and install directly from upstream internet sources (most single-node config templates); DNS servers can also remain unconfigured, as Pigsty has no DNS dependency.

INFRA Node vs ADMIN Node

The management-initiating ADMIN node typically coincides with the INFRA node. In single-node deployment, this is exactly the case. In multi-node deployment with multiple INFRA nodes, the admin node is usually the first in the infra group; others serve as backups. However, exceptions exist. You might separate them for various reasons:

For example, in large-scale production deployments, a classic pattern uses 1-2 dedicated management hosts (tiny VMs suffice) belonging to the DBA team as the control hub, with 2-3 high-spec physical machines (or more!) as monitoring infrastructure. Here, admin nodes are separate from infrastructure nodes. In this case, the admin_ip in your config should point to an INFRA node’s IP, not the current ADMIN node’s IP. This is for historical reasons: initially ADMIN and INFRA nodes were tightly coupled concepts, with separation capabilities evolving later, so the parameter name wasn’t changed.

Another common scenario is managing cloud nodes locally. For example, you can install Ansible on your laptop and specify cloud nodes as “managed targets.” In this case, your laptop acts as the ADMIN node, while cloud servers act as INFRA nodes.

all:
  children:
    infra:   { hosts: { 10.10.10.10: { infra_seq: 1 , ansible_host: your_ssh_alias } } }  # <--- Use ansible_host to point to cloud node (fill in ssh alias)
    etcd:    { hosts: { 10.10.10.10: { etcd_seq: 1 } }, vars: { etcd_cluster: etcd } }    # SSH connection will use: ssh your_ssh_alias
    pg-meta: { hosts: { 10.10.10.10: { pg_seq: 1, pg_role: primary } }, vars: { pg_cluster: pg-meta } }
  vars:
    version: v4.0.0
    admin_ip: 10.10.10.10
    region: default

Multiple INFRA Nodes

By default, Pigsty only needs one INFRA node for most requirements. Even if the INFRA module goes down, it won’t affect database services on other nodes.

However, in production environments with high monitoring and alerting requirements, you may want multiple INFRA nodes to improve infrastructure availability. A common deployment uses two Infra nodes for redundancy, monitoring each other… or more nodes to deploy a distributed Victoria cluster for unlimited horizontal scaling.

Each Infra node is independent—Nginx points to services on the local machine. VictoriaMetrics independently scrapes metrics from all services in the environment, and logs are pushed to all VictoriaLogs collection endpoints by default. The only exception is Grafana: every Grafana instance registers all VictoriaMetrics / Logs / Traces / PostgreSQL instances as datasources. Therefore, each Grafana instance can see complete monitoring data.

If you modify Grafana—such as adding new dashboards or changing datasource configs—these changes only affect the Grafana instance on that node. To keep Grafana consistent across all nodes, use a PostgreSQL database as shared storage. See Tutorial: Configure Grafana High Availability for details.

3 - PGSQL Arch

The PGSQL module organizes PostgreSQL in production as clusters—logical entities composed of a group of database instances associated by primary-replica relationships.

Overview

The PGSQL module includes the following components, working together to provide production-grade PostgreSQL HA cluster services:

The vip-manager is an on-demand component. Additionally, PGSQL uses components from other modules:

By analogy, the PostgreSQL database kernel is the CPU, while the PGSQL module packages it as a complete computer. Patroni and Etcd form the HA subsystem, pgBackRest and MinIO form the backup subsystem. HAProxy, Pgbouncer, and vip-manager form the access subsystem. Various Exporters and Vector build the observability subsystem; finally, you can swap different kernel CPUs and extension cards.

Component Interaction

• Cluster DNS is resolved by DNSMASQ on infra nodes

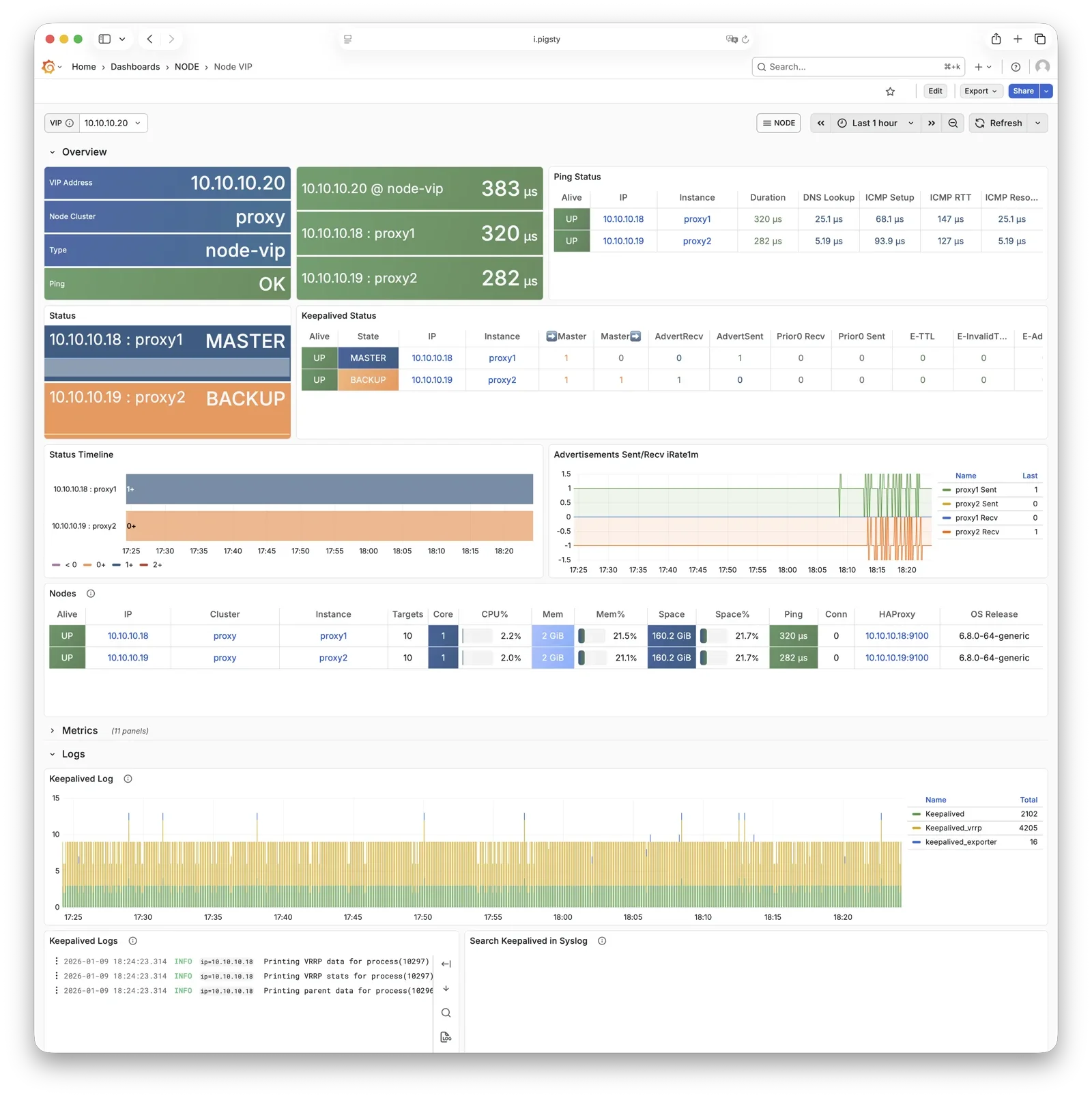

• Cluster VIP is managed by vip-manager, which binds pg_vip_address to the cluster primary node.
  • vip-manager gets cluster leader info written by patroni from the etcd cluster
• Cluster services are exposed by HAProxy on nodes, different services distinguished by node ports (543x).
  • HAProxy port 9101: Monitoring metrics & statistics & admin page
  • HAProxy port 5433: Routes to primary pgbouncer: read-write service
  • HAProxy port 5434: Routes to replica pgbouncer: read-only service
  • HAProxy port 5436: Routes to primary postgres: default service
  • HAProxy port 5438: Routes to offline postgres: offline service
  • HAProxy routes traffic based on health check info from patroni.

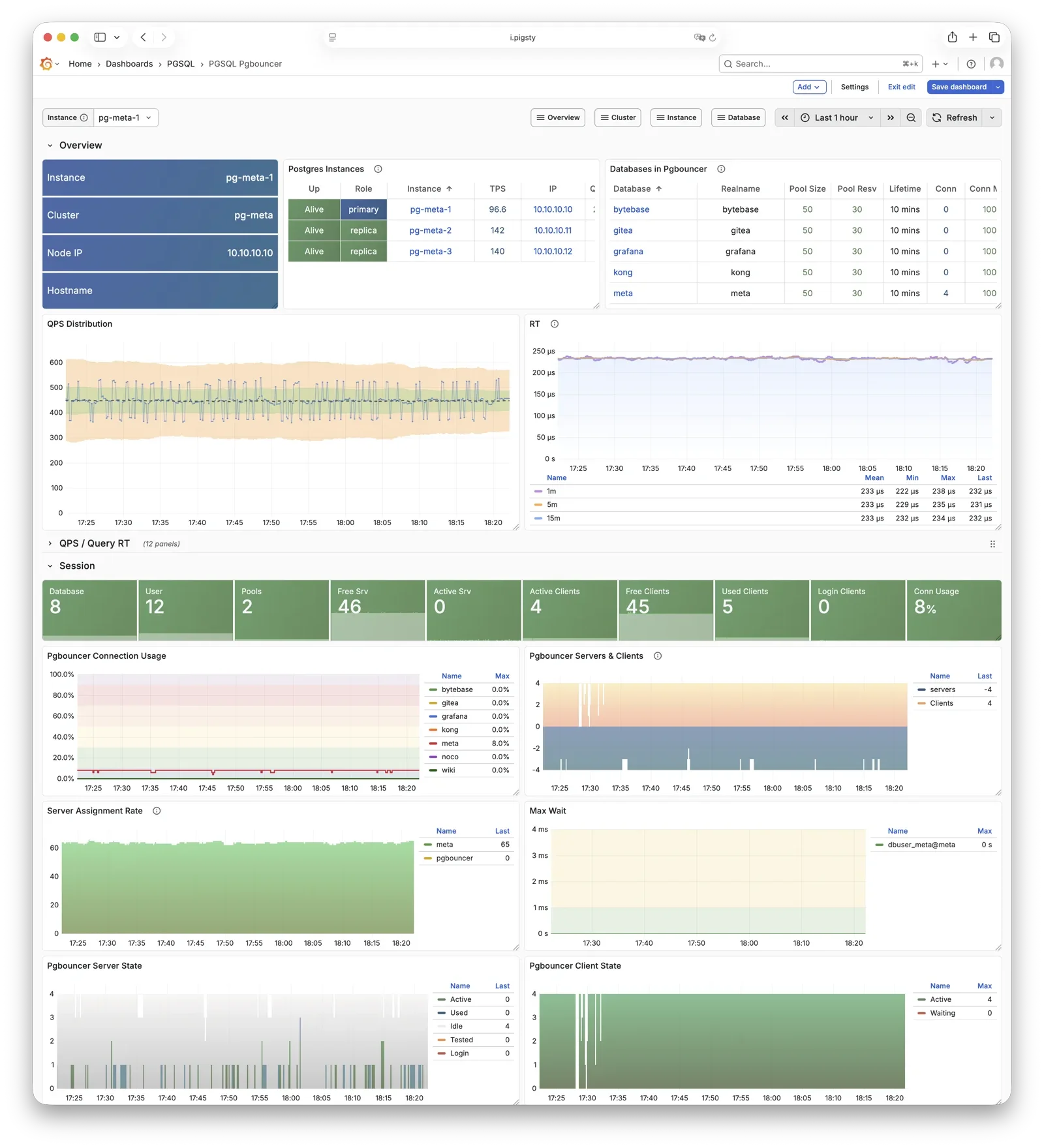

• Pgbouncer is connection pooling middleware, listening on port 6432 by default, buffering connections, exposing additional metrics, and providing extra flexibility.
  • Pgbouncer is stateless and deployed 1:1 with Postgres via local Unix socket.
  • Production traffic (primary/replica) goes through pgbouncer by default (can specify bypass via pg_default_service_dest)
  • Default/offline services always bypass pgbouncer and connect directly to target Postgres.
• PostgreSQL listens on port 5432, providing relational database services
  • Installing PGSQL module on multiple nodes with the same cluster name automatically forms an HA cluster via streaming replication
  • PostgreSQL process is managed by patroni by default.

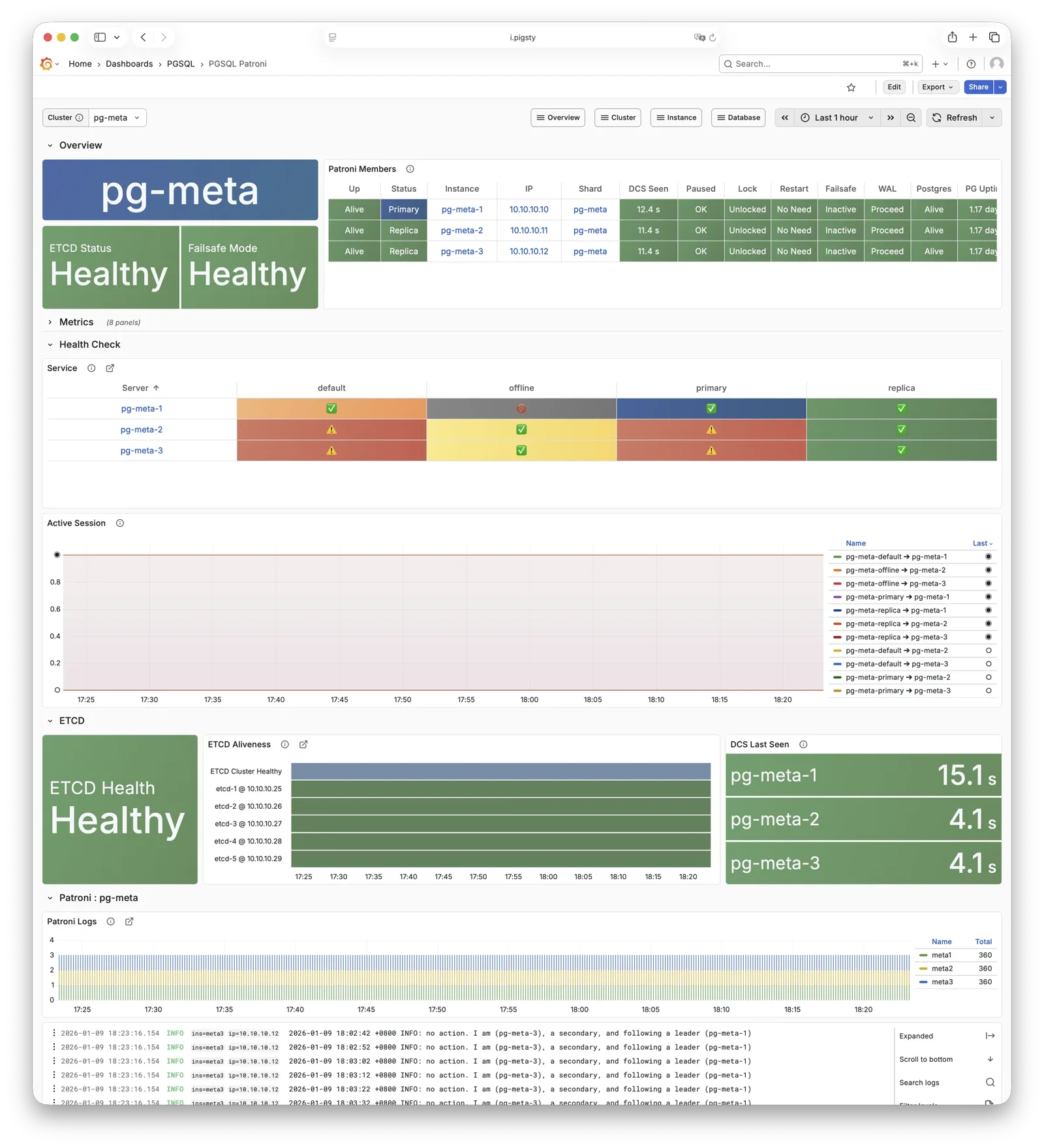

• Patroni listens on port 8008 by default, supervising PostgreSQL server processes
  • Patroni starts Postgres server as child process
  • Patroni uses etcd as DCS: stores config, failure detection, and leader election.
  • Patroni provides Postgres info (e.g., primary/replica) via health checks, HAProxy uses this to distribute traffic
• pg_exporter exposes postgres monitoring metrics on port 9630
• pgbouncer_exporter exposes pgbouncer metrics on port 9631

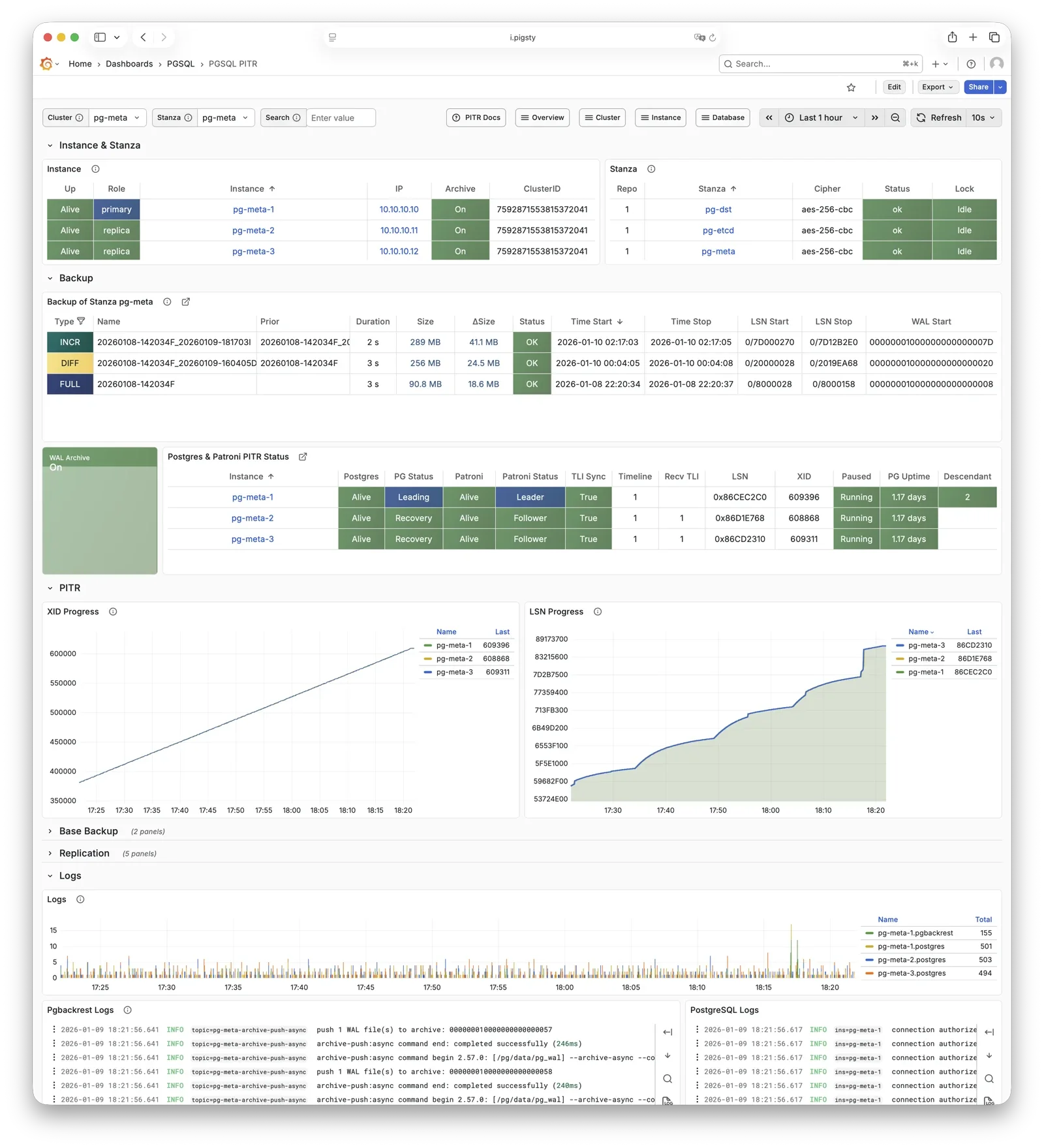

• pgBackRest uses local backup repository by default (pgbackrest_method = local)
  • If using local (default), pgBackRest creates local repository under pg_fs_bkup on primary node
  • If using minio, pgBackRest creates backup repository on dedicated MinIO cluster
• Vector collects Postgres-related logs (postgres, pgbouncer, patroni, pgbackrest)
  • vector listens on port 9598, also exposes its own metrics to VictoriaMetrics on infra nodes
  • vector sends logs to VictoriaLogs on infra nodes

HA Subsystem

The HA subsystem consists of Patroni and etcd, responsible for PostgreSQL cluster failure detection, automatic failover, and configuration management.

How it works: Patroni runs on each node, managing the local PostgreSQL process and writing cluster state (leader, members, config) to etcd. When the primary fails, Patroni coordinates election via etcd, promoting the healthiest replica to new primary. The entire process is automatic, with RTO typically under 30 seconds.

Key Interactions:

• PostgreSQL: Starts, stops, reloads PG as parent process, controls its lifecycle
• etcd: External dependency, writes/watches leader key for distributed consensus and failure detection
• HAProxy: Provides health checks via REST API (:8008), reporting instance role
• vip-manager: Watches leader key in etcd, auto-migrates VIP

For more information, see: High Availability and Config: PGSQL - PG_BOOTSTRAP

Access Subsystem

The access subsystem consists of HAProxy, Pgbouncer, and vip-manager, responsible for service exposure, traffic routing, and connection pooling.

There are multiple access methods. A typical traffic path is: Client → DNS/VIP → HAProxy (543x) → Pgbouncer (6432) → PostgreSQL (5432)

Service Ports:

• 5433 primary: Read-write service, routes to primary Pgbouncer
• 5434 replica: Read-only service, routes to replica Pgbouncer
• 5436 default: Default service, direct to primary (bypasses pool)
• 5438 offline: Offline service, direct to offline replica (ETL/analytics)

Key Features:

• HAProxy uses Patroni REST API to determine instance role, auto-routes traffic
• Pgbouncer uses transaction-level pooling, absorbs connection spikes, reduces PG connection overhead
• vip-manager watches etcd leader key, auto-migrates VIP during failover

For more information, see: Service Access and Config: PGSQL - PG_ACCESS

Backup Subsystem

The backup subsystem consists of pgBackRest (optionally with MinIO as remote repository), responsible for data backup and point-in-time recovery (PITR).

Backup Types:

• Full backup: Complete database copy
• Incremental/differential backup: Only backs up changed data blocks
• WAL archiving: Continuous transaction log archiving, enables any point-in-time recovery

Storage Backends:

• local (default): Local disk, backups stored at pg_fs_bkup mount point
• minio: S3-compatible object storage, supports centralized backup management and off-site DR

Key Interactions:

• pgBackRest → PostgreSQL: Executes backup commands, manages WAL archiving
• pgBackRest → Patroni: Recovery can bootstrap replicas as new primary or standby
• pgbackrest_exporter → Prometheus: Exports backup status metrics, monitors backup health

For more information, see: PITR, Backup & Recovery, and Config: PGSQL - PG_BACKUP

Observability Subsystem

The observability subsystem consists of three Exporters and Vector, responsible for metrics collection and log aggregation.

Data Flow:

• Metrics: Exporter → VictoriaMetrics (INFRA) → Grafana dashboards
• Logs: Vector → VictoriaLogs (INFRA) → Grafana log queries

pg_exporter / pgbouncer_exporter connect to target services via local Unix socket, decoupled from HA topology. In slim install mode, these components can be disabled.

For more information, see: Config: PGSQL - PG_MONITOR

PostgreSQL

PostgreSQL is the PGSQL module core, listening on port 5432 by default for relational database services, deployed 1:1 with nodes.

Pigsty currently supports PostgreSQL 14-18 (lifecycle major versions), installed via binary packages from the PGDG official repo. Pigsty also allows you to use other PG kernel forks to replace the default PostgreSQL kernel, and install up to 440 extension plugins on top of the PG kernel.

PostgreSQL processes are managed by default by the HA agent—Patroni. When a cluster has only one node, that instance is the primary; when the cluster has multiple nodes, other instances automatically join as replicas: through physical replication, syncing data changes from the primary in real-time. Replicas can handle read-only requests and automatically take over when the primary fails.

You can access PostgreSQL directly, or through HAProxy and Pgbouncer connection pool.

For more information, see: Config: PGSQL - PG_BOOTSTRAP

Patroni

Patroni is the PostgreSQL HA control component, listening on port 8008 by default.

Patroni takes over PostgreSQL startup, shutdown, configuration, and health status, writing leader and member information to etcd. It handles automatic failover, maintains replication factor, coordinates parameter changes, and provides a REST API for HAProxy, monitoring, and administrators.

HAProxy uses Patroni health check endpoints to determine instance roles and route traffic to the correct primary or replica. vip-manager monitors the leader key in etcd and automatically migrates the VIP when the primary changes.

For more information, see: Config: PGSQL - PG_BOOTSTRAP

Pgbouncer

Pgbouncer is a lightweight connection pooling middleware, listening on port 6432 by default, deployed 1:1 with PostgreSQL database and node.

Pgbouncer runs statelessly on each instance, connecting to PostgreSQL via local Unix socket, using Transaction Pooling by default for pool management, absorbing burst client connections, stabilizing database sessions, reducing lock contention, and significantly improving performance under high concurrency.

Pigsty routes production traffic (read-write service 5433 / read-only service 5434) through Pgbouncer by default, while only the default service (5436) and offline service (5438) bypass the pool for direct PostgreSQL connections.

Pool mode is controlled by pgbouncer_poolmode, defaulting to transaction (transaction-level pooling). Connection pooling can be disabled via pgbouncer_enabled.

For more information, see: Config: PGSQL - PG_ACCESS

pgBackRest

pgBackRest is a professional PostgreSQL backup/recovery tool, one of the strongest in the PG ecosystem, supporting full/incremental/differential backup and WAL archiving.

Pigsty uses pgBackRest for PostgreSQL PITR capability, allowing you to roll back clusters to any point within the backup retention window.

pgBackRest works with PostgreSQL to create backup repositories on the primary, executing backup and archive tasks. By default, it uses local backup repository (pgbackrest_method = local), but can be configured for MinIO or other object storage for centralized backup management.

After initialization, pgbackrest_init_backup can automatically trigger the first full backup. Recovery integrates with Patroni, supporting bootstrapping replicas as new primaries or standbys.

For more information, see: Backup & Recovery and Config: PGSQL - PG_BACKUP

HAProxy

HAProxy is the service entry point and load balancer, exposing multiple database service ports.

HAProxy uses Patroni REST API health checks to determine instance roles and route traffic to the appropriate primary or replica. Service definitions are composed from pg_default_services and pg_services.

A dedicated HAProxy node group can be specified via pg_service_provider to handle higher traffic; by default, HAProxy on local nodes publishes services.

For more information, see: Service Access and Config: PGSQL - PG_ACCESS

vip-manager

vip-manager binds L2 VIP to the current primary node. This is an optional component; enable it if your network supports L2 VIP.

vip-manager runs on each PG node, monitoring the leader key written by Patroni in etcd, and binds pg_vip_address to the current primary node’s network interface. When cluster failover occurs, vip-manager immediately releases the VIP from the old primary and rebinds it on the new primary, switching traffic to the new primary.

This component is optional, enabled via pg_vip_enabled. When enabled, ensure all nodes are in the same VLAN; otherwise, VIP migration will fail. Public cloud networks typically don’t support L2 VIP; it’s recommended only for on-premises and private cloud environments.

For more information, see: Tutorial: VIP Configuration and Config: PGSQL - PG_ACCESS

pg_exporter

pg_exporter exports PostgreSQL monitoring metrics, listening on port 9630 by default.

pg_exporter runs on each PG node, connecting to PostgreSQL via local Unix socket, exporting rich metrics covering sessions, buffer hits, replication lag, transaction rates, etc., scraped by VictoriaMetrics on INFRA nodes.

Collection configuration is specified by pg_exporter_config, with support for automatic database discovery (pg_exporter_auto_discovery), and tiered cache strategies via pg_exporter_cache_ttls.

You can disable this component via parameters; in slim install, this component is not enabled.

For more information, see: Config: PGSQL - PG_MONITOR

pgbouncer_exporter

pgbouncer_exporter exports Pgbouncer connection pool metrics, listening on port 9631 by default.

pgbouncer_exporter uses the same pg_exporter binary but with a dedicated metrics config file, supporting pgbouncer 1.8-1.25+. pgbouncer_exporter reads Pgbouncer statistics views, providing pool utilization, wait queue, and hit rate metrics.

If Pgbouncer is disabled, this component is also disabled. In slim install, this component is not enabled.

For more information, see: Config: PGSQL - PG_MONITOR

pgbackrest_exporter

pgbackrest_exporter exports backup status metrics, listening on port 9854 by default.

pgbackrest_exporter parses pgBackRest status, generating metrics for most recent backup time, size, type, etc. Combined with alerting policies, it quickly detects expired or failed backups, ensuring data safety. Note that when there are many backups or using large network repositories, collection overhead can be significant, so pgbackrest_exporter has a default 2-minute collection interval. In the worst case, you may see the latest backup status in the monitoring system 2 minutes after a backup completes.

For more information, see: Config: PGSQL - PG_MONITOR

etcd

etcd is a distributed consistent store (DCS), providing cluster metadata storage and leader election capability for Patroni.

etcd is deployed and managed by the independent ETCD module, not part of the PGSQL module itself, but critical for PostgreSQL HA. Patroni writes cluster state, leader info, and config parameters to etcd; all nodes reach consensus through etcd. vip-manager also reads the leader key from etcd to enable automatic VIP migration.

For more information, see: ETCD Module

vector

Vector is a high-performance log collection component, deployed by the NODE module, responsible for collecting PostgreSQL-related logs.

Vector runs on nodes, tracking PostgreSQL, Pgbouncer, Patroni, and pgBackRest log directories, sending structured logs to VictoriaLogs on INFRA nodes for centralized storage and querying.

For more information, see: NODE Module
